- Width8.0 cm
- Height28.0 cm
- Weight3.5 kg
- MaterialBrass
- ShapeOval
- ManoMano ReferenceME43216877
- Warranty3 years
- Product codeARV8TR03
Features and Benefits:
- Shower valve supplies water to 3 outlets

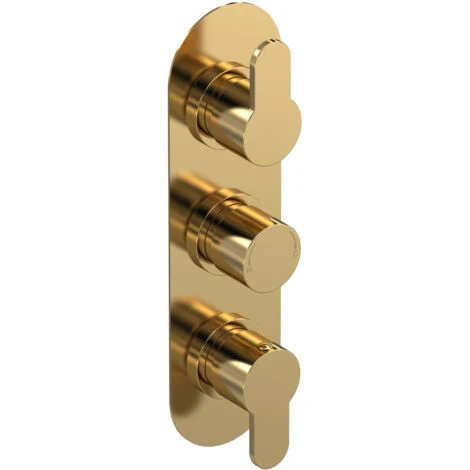

- Minimalist sleek design with brushed brass finish
- Can be fitted vertically or horizontally
- Accurate flow control
- Made in Britain
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The patented cartridge is highly resistant to calcium build up – even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates – even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
- Simply remove the cartridge turn 180 degree and replace
- Manufactured from high quality brass & ABS
- 1/4 turn ceramic disc technology for long life and smooth operation
- During installation extra care must be taken to avoid damaging the fittings
- Guarantee : 3 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information
Important Information:
- Shower Kit sold separately (Available in our Store)
| Shower Type | Thermostatic |
|---|---|
| Shower Valve Controls | 3 |
| Shower Valve Position | Concealed |
| Valve Shape | Oval |
| Handle Type | Knob/Lever |
| Shower Valve Outlets | 3 |
| Minimum Pressure | 0.5 Bar |

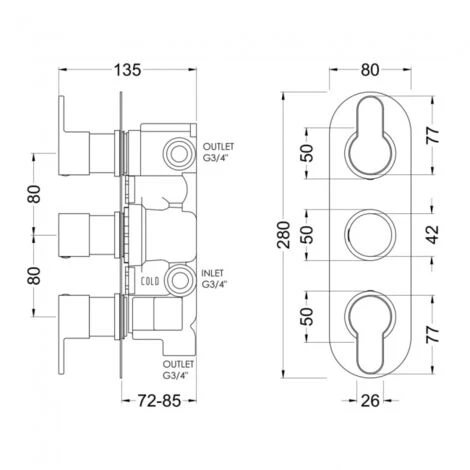

| Shower Valve Height | 280mm |
| Shower Valve Width | 80mm |
| Shower Valve Depth | 72-85mm |
| Inlet Connection Size | 3/4 BSP |
| Outlet Connection Size | 3/4 BSP |
| Brand | Nuie |
| Collection | Arvan |
| Material | Brass/ABS |
| Colour | Brushed Brass |
| Style | Modern |
| Market | Domestic |
| Flow Rate – 0.5 Bar | 13 l/min |
| Flow Rate – 1.0 Bar | 17 l/min |
| Flow Rate – 2.0 Bar | 24 l/min |
| Flow Rate – 3.0 Bar | 27 l/min |
| Weight | 3.5 Kg |
| EAN Barcode | 5056462623122 |
| Manufacturer Part Number(s) | ARV8TR03 |
