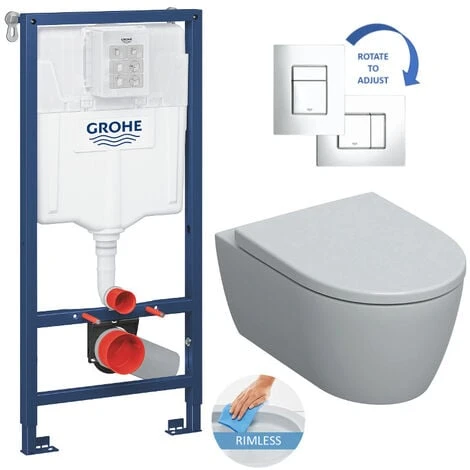

Grohe Toilet Set Rapid SL Support Frame + Geberit Rimfree Wall Hung Toilet + Skate Cosmopolitan Flush Plate

Features of the Toilet Set Rapid SL support frame + Geberit Rimfree wall hung toilet + Skate Cosmopolitan flush plate (RapidSL-iCon-1) :

• Grohe Rapid SL Frame set (38811000)
• Skate Cosmopolitan toilet flush plate (38732000)
• iCon Wall-hung rimless WC, White (204.060.000)
• iCon Softclose seat in Duroplast for wall-hung toilets, white (500.670.01.1)
• Grohe Rapid SL wall bracket fixing kit (3855800M)

Grohe Rapid SL Frame set (38811000) :

• GD 2 cistern, with inspection hatch

• Height: 1,13 m
• Steel frame with epoxy finish
• Mounting on load-bearing walls or in light weight double framed walls
• Quick adjustment and locking of the height up to 200 mm
• Supplied with fixing material
• TÜV approved
• Supplied with bolts and nuts for fixing the toilet bowl, ceramic fixing
• Distance between fixings 180/230 mm
• PP drain elbow Ø 90 mm
• Depth and height adjustable (200 mm)
• Reducing connection DN 90/110
• Drainage and supply fitting
• Tank 6 – 9 l
• Factory setting 3 and 6 l
• Pneumatic release mechanism (AV1) for one-touch (interruptible) and two-touch (interruptible) control panel
• Side or rear supply
• Condensation-proof tank
• Water supply with angle valve and flexible connection
• Installation of the template, horizontal or vertical, without tools

.

Skate Cosmopolitan toilet flush plate (38732000) :

• Two-touch or interruptable

• For pneumatic mechanism
• 156 x 197 mm

.

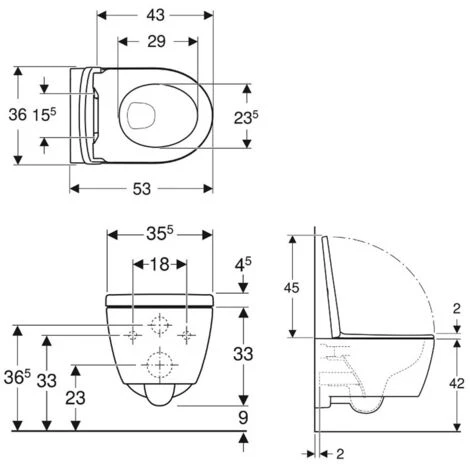

iCon Wall-hung rimless WC , White (204.060.000) :

• Brand: Geberit
• Material: Sanitary ware
• Rimless bowl
• Shrouded bowl
• Invisible fixings
• Toilet seat with soft closing seat
• Seat made of Duroplast, anti-bacterial
• Quick release
• Easy to clean thanks to the Rimfree system and the Quick release
• Quick installation
• Reference no. Toilet bowl : 204.060.000

.

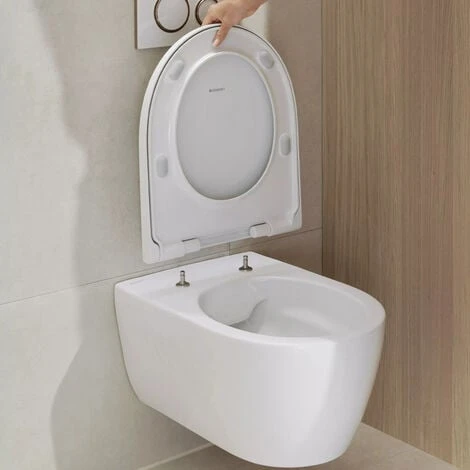

iCon Softclose seat in Duroplast for wall-hung toilets, white (500.670.01.1):

• Material : Duroplast
• Colour: white / glossy
• Quick-release hinges : Yes
• Soft-closing mechanism : Yes
• Fastening from above
• Hinge material : Stainless steel

.

Grohe Rapid SL wall bracket fixing kit (3855800M)

.
