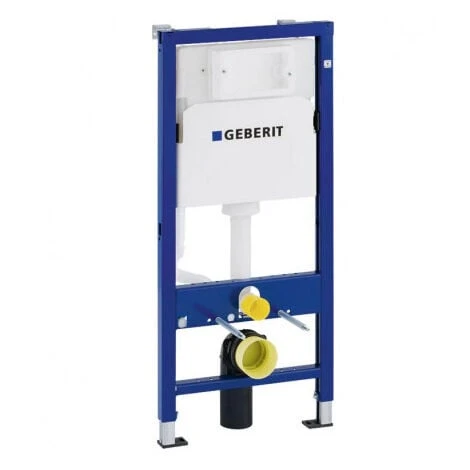

Geberit Duofix UP100 Support Frame + Cistern For WC 112 Cm (458.103.00.1)

Geberit Duofix basic UP100, 112 cm, with concealed water tank UP100

Attention: Only the Geberit Delta21, Delta20 or Delta50 flush plate is compatible

The set includes :

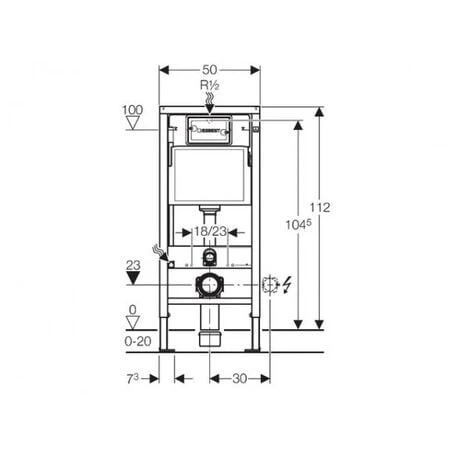

• 112 cm galvanised support frame with adjustable feet from 0-20 cm
• UP100 water tank (with 25-year manufacturer’s warranty on spare parts)
• pre-painted frame in Geberit blue
• support feet with cm scale marking
• swivel feet for mounting in UW50/UW75 profile
• crossbar for cladding support
• 2 threaded rods M12 for fixing the ceramic tiles with an intermediate distance of 18 or 23 cm
• concealed cistern 4-6-7.5 l, insulated against condensation
• two-stage front operation with Delta21, Delta20 or Delta50 plates
• supply from the back/top
• angle stop valve R1/2″,
• housing for inspection hatch
• construction protection made of styrophor
• drain elbow Ø 90 mm
• sleeve fitting Ø 90 mm
• transition sleeve Ø 90/110 mm
• fixing material

This set does not include :

Wall bracket for load-bearing wall 111.815.00.1

Delta21, Delta20 or Delta50 plates are not included
