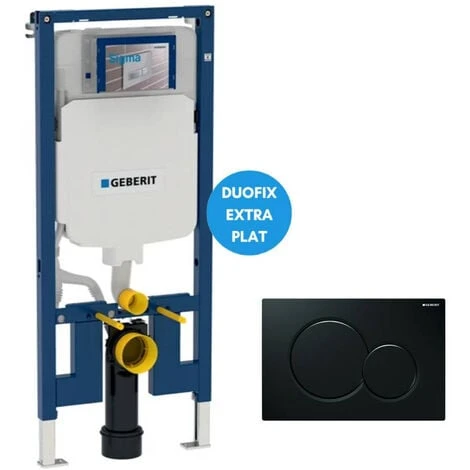

Geberit Duofix Pack Extra-flat Frame 114 Cm UP720, Space-saving + Sigma01 Plate, Black (111.796.00.1-A)

Features of the Geberit Duofix UP720 space-saving, extra-flat 114 cm base + Sigma01 plate, black (111.796.00.1-A) :

• Geberit Duofix Extra-flat support frame 114 cm UP720, space-saving, with Sigma 8 cm concealed cistern (111.796.00.1)
• Geberit Sigma01 release plate, black (115.770.DW.5)

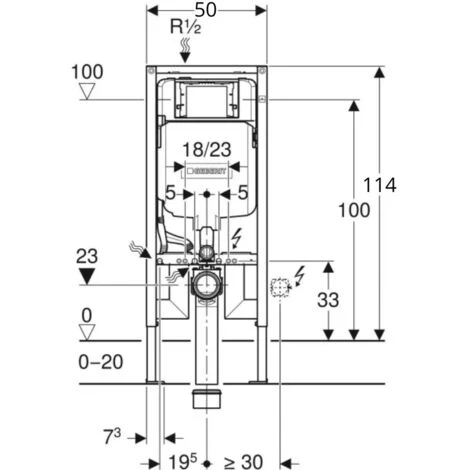

Geberit Duofix UP720 extra-flat support frame 114 cm, space-saving, with Sigma concealed cistern 8 cm (111.796.00.1):

• Frame suitable for WC bowls with small support surface (with pressure-resistant wall cladding)
• Galvanised, continuously adjustable, non-slip support feet
• Depth of foot plates suitable for installation on UW 50 profiles and Geberit Duofix system rails
• Connecting bend for different depth positions, can be mounted without tools
• Connecting bend for depth position flush with the front for vertical installation
• Extended connection bend, for floor connection
• Connection bend fastening with sound insulation
• Built-in tank with front release
• Built-in tank insulated against condensation
• Immediate post-flushing possible with factory setting
• Installation and maintenance work on concealed cisterns without tools
• Water inlet from the top left
• Access panel housing, protects against moisture and dust
• Access panel box, can be cut to size, suitable for flush-mounted trigger plates
• Equipped with a supply line sleeve for connection of Geberit AquaClean washbasins
• With fixing possibilities for electrical connection

Use :

• For dry wall construction
• For installation in walls at room height or partial height
• For installation in installation walls at room height
• For wall-hung toilets extended to 70 cm
• For one-touch, two-touch or interruptible flushing
• For screed heights of 0-20 cm

Scope of delivery :

• R 1/2″ supply line, MF compatible, with integrated angle valve and hand wheel
• Reservation box for inspection hatch
• 2 wall mountings
• WC connection set, ø 90 mm
• 90° PE-HD connection bend, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• 2 protective caps
• 2 threaded rods M12
• Fixing material

Geberit Sigma01 release plate, glossy black (115.770.DW.5) :

• Frontal release
• Sound-insulated release rods, quick adjustment without tools
• Release force < 20 N
• Mounting frame
• 2 spacer bolts
• 2 release rods
